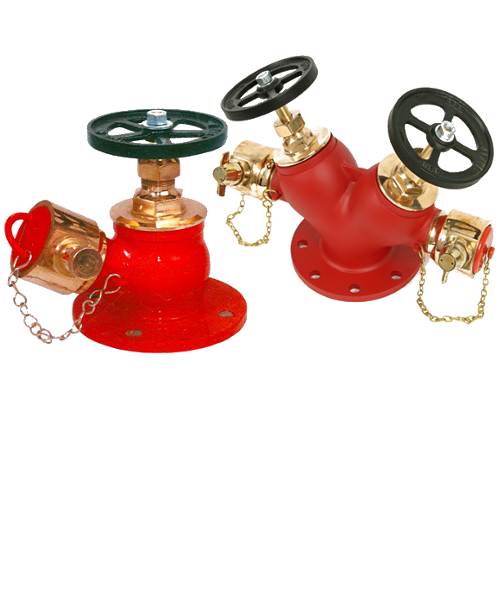

SINGLE & DOUBLE HEADED HYDRANT VALVE

Single headed gun metal hydrant valve with flanged inlet, stop valve, spindle and cast iron handle wheel. It has a female instantaneous outlet with blank cap and is hydrostatically tested to 21 kgf/cm2 of perssure. It is generally used for external and internal installation. The double headed hydrant has double the capacity.

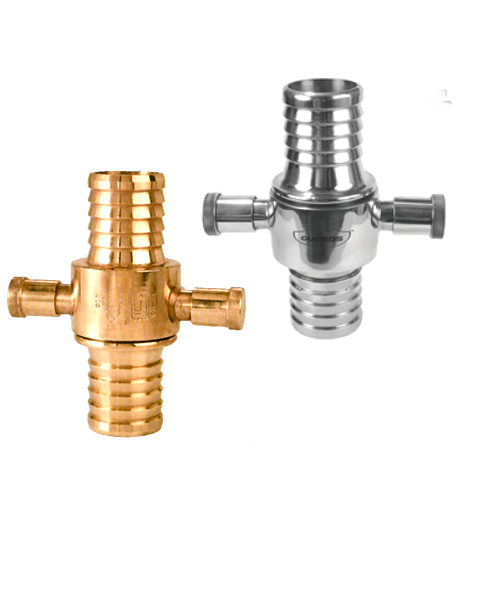

HOSE COUPLING

Hose coupling are made of gun metal. These couplings are instantaneous type and are wound with copper/G.I. wire at either end of the delivery hose. These coupling are available in 28mm dia., 50mm dia. and 63mm dia.

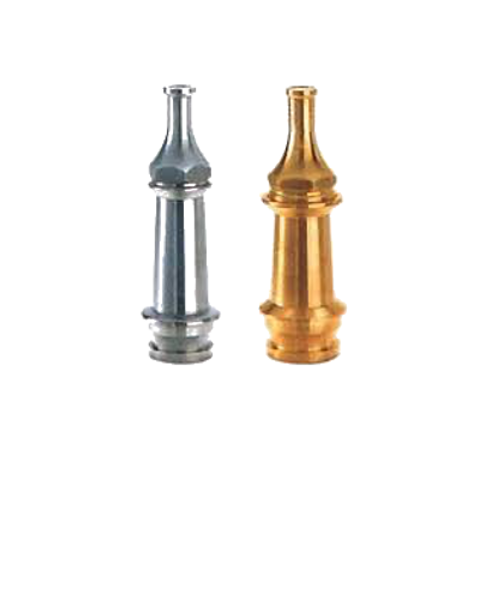

BRANCH PIPE WITH NOZZLE

It is a tappered gun metal nozzle having 63mm dia. Instantaneous type male intent and on the other side a hexagonal nozzle of 20mm dia. bore which gives a jet of water.

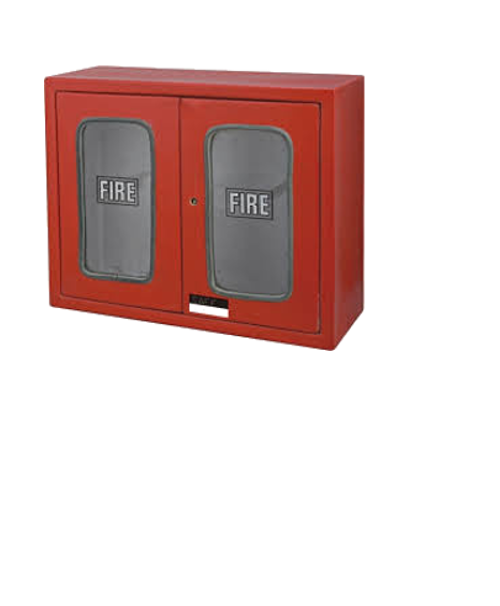

HOSE CABINET

Hose cabinet is fabricated out of MS sheet metal having glass fronted twin doors, with safe locking facility and enough space to accommodate 2 numbers of hoses and a branch pipe.

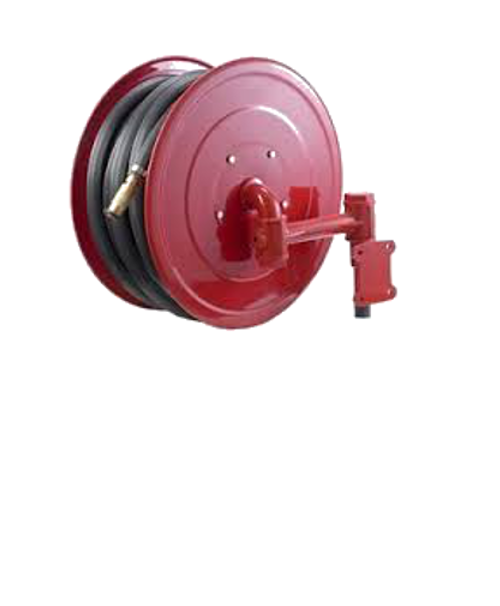

FIRST AID HOSE REEL

Fire aid hose reel is made out of MS sheet, consisting of house guide on which rubber hose of 19mm dia of required length is kept wound. It has a swing type motion to allow 180° rotation.

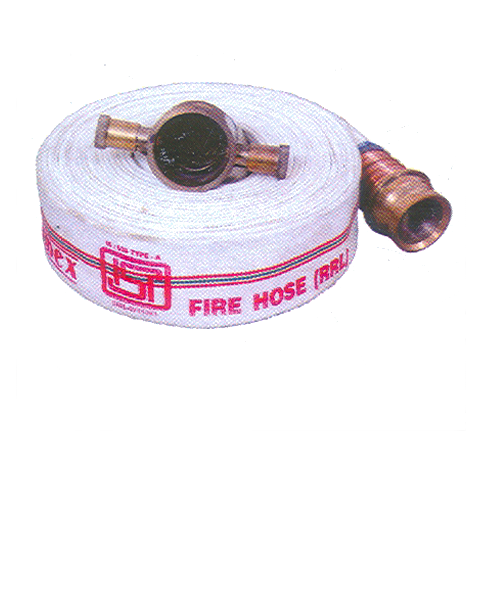

FIRE FIGHTING HOSE

This is a flexible pipe which is bound on one side with male and on the other side with female instances type gun metal coupling pair. The hose of length 7.5mtrs, 15mtrs, 30mtrs, are available and the very same lengths can be suppled in RRL 63 mm internal Dia. brand non percolating Fire Fighting hose bearing ISI mark as IS:636/1988 Type A certifi-cated by BIS as per IS:9002 quality systems in length of 15 meters.

FIRE BRIGADE INLET CONNECTION

First brigade inlet connection consists of two or four numbers of built in non return valves fixed on a manifold and fabricated MS pipe enclosed with MS cabinet.

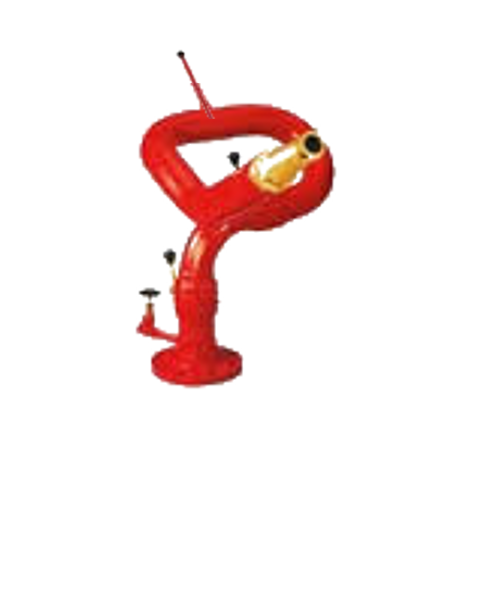

SUPER JET WATER MONITOR

Super jet water monitor is specially designed for fixing on a hydrant stand post or on a specially built trolley in case of portable units, monitor rotates 360degres elevates between +1500 to -200 with flow rate up to 2700 LPM at 7gf/cm2. Generally water monitors are used in oil jetters,oil refineries and chemical plant.
